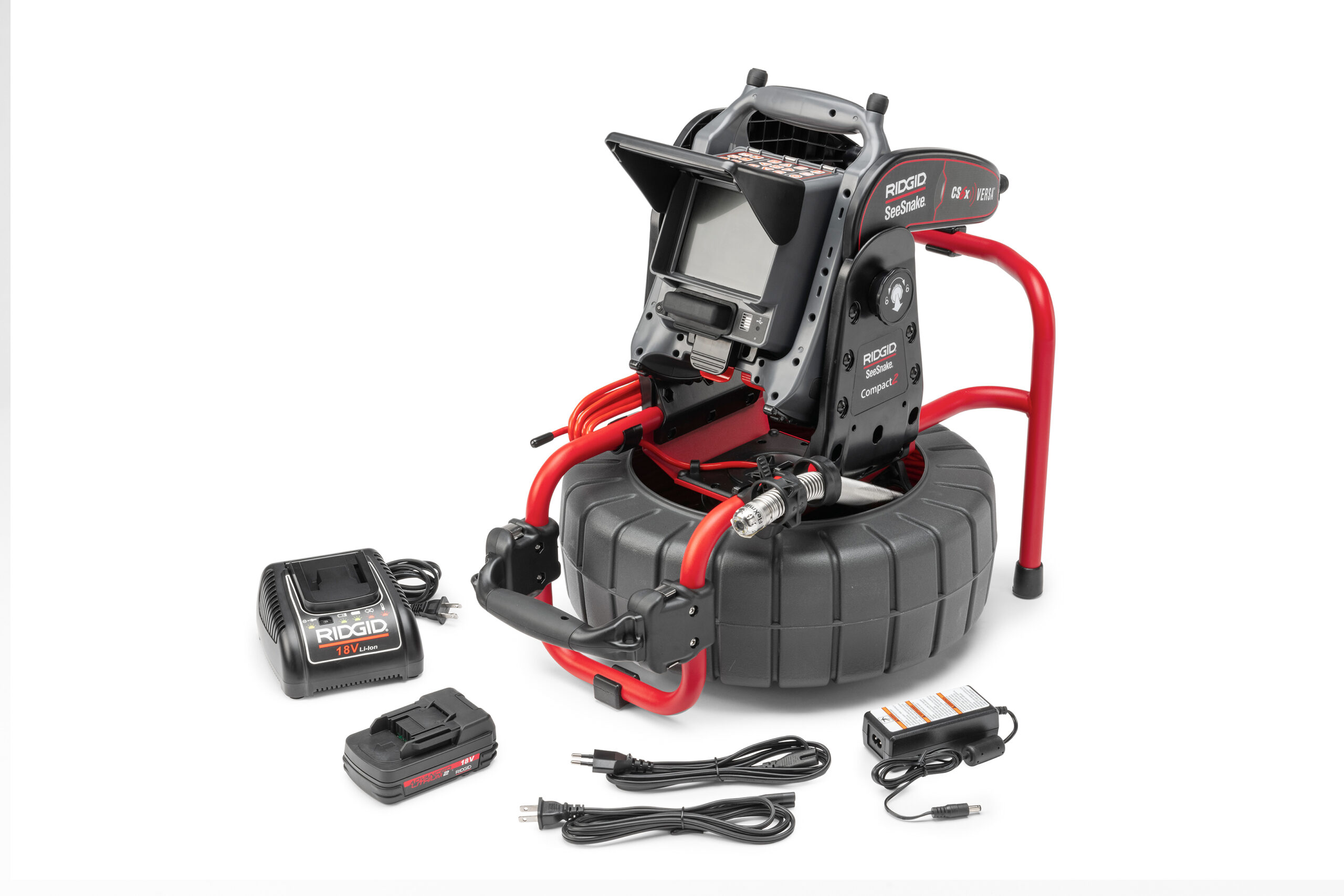

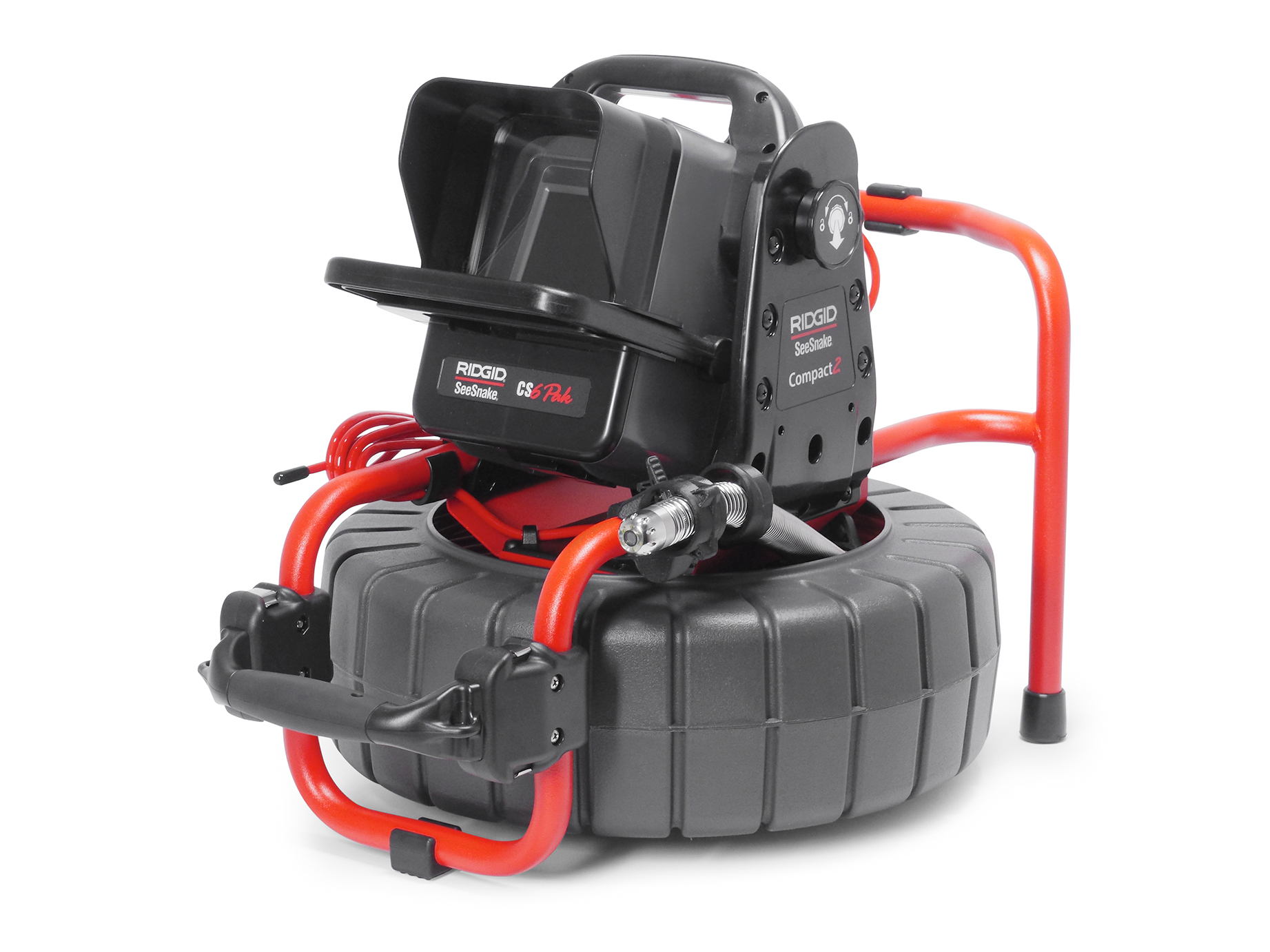

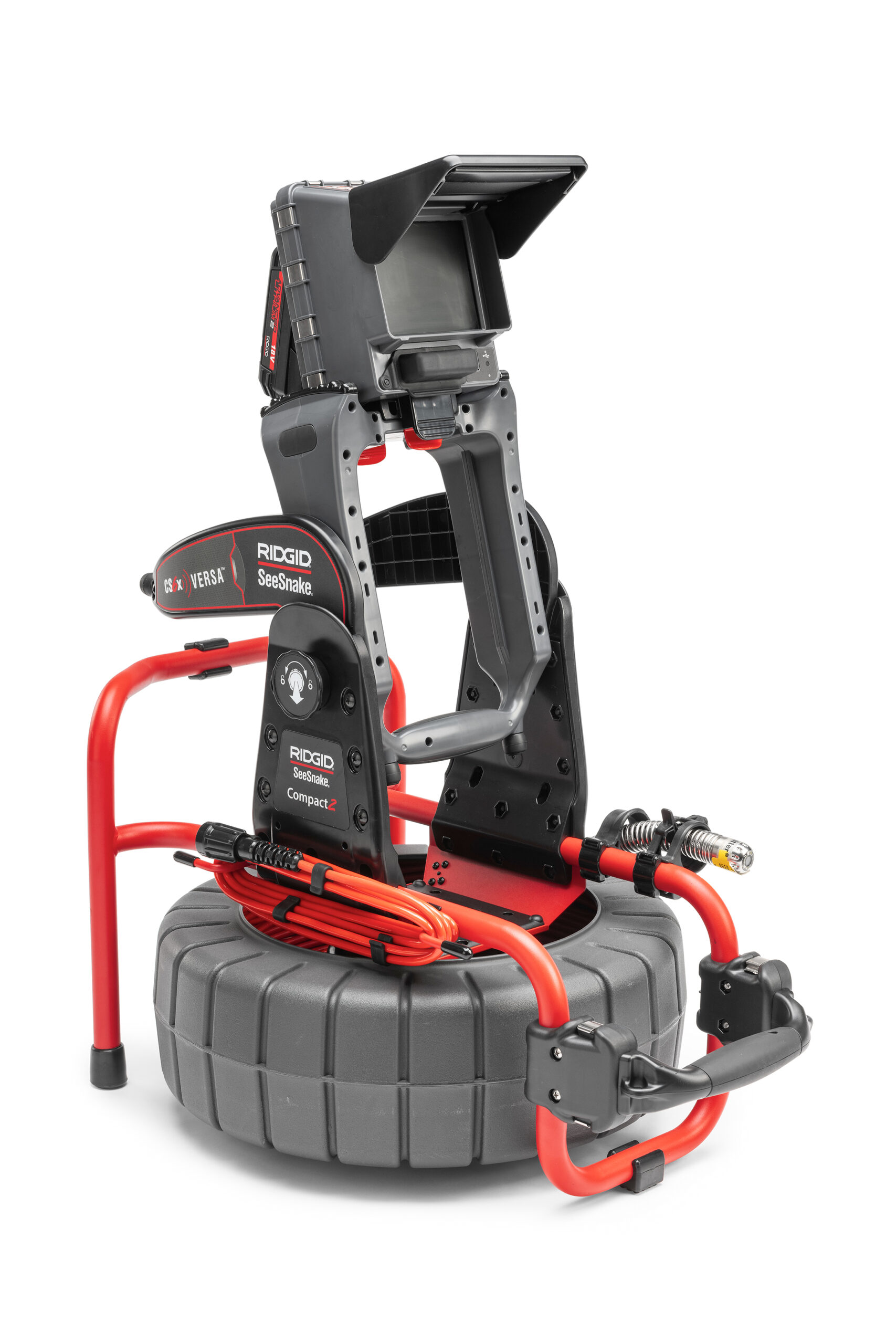

Ridgid Seesnake Compact 2 Camera System with CS6x VERSA Monitor for 1 1/2″ – 6″ Drains (RID-48118)

£6.711.36 ex VAT

The best selling professional surveying drain camera from Ridgid.

SeeSnake® Compact 2 System packed with CS6x Versa monitor delivers big performance in a small package. The Compact 2 delivers 100’ (30 m) of push cable with a 2.5” (63 mm) min bend radius. Self-leveling camera head provides an image that is always upright. Quick-release dock for the CS6x Versa Digital Recording Monitor with Wi-Fi provides fast, efficient job setup. Tilt the monitor to the desired viewing angle while docked or remove it for convenient jobsite placement.

Available on back-order

Description

The best selling & highly recommended Compact 2 system from Ridgid.

SeeSnake® Compact 2 System packed with CS6x Versa monitor delivers big performance in a small package. The Compact 2 delivers 100’ (30 m) of push cable with a 2.5” (63 mm) min bend radius. Self-leveling camera head provides an image that is always upright. Quick-release dock for the CS6x Versa Digital Recording Monitor with Wi-Fi provides fast, efficient job setup. Tilt the monitor to the desired viewing angle while docked or remove it for convenient jobsite placement.

Features

  • Quick-release docking system for fast, efficient job setup with the SeeSnake CS6x Versa monitor.
  • Sturdy metal frame provides a solid base that makes it easy to push and retrieve the cable.
  • Powerful FleXmitter® sonde has long range and preserves the camera’s ability to make turns.
  • The Compact 2 comes in the popular Compact formfactor, combining a small package and all-in-one monitor capability (when used with the SeeSnake CS6x Versa monitor).
  • The Compact 2 has 100′ (30 m) of flexible push cable, providing good ability to fit in smaller diameter pipes and navigate through tight turns.
  • Stream live inspection video over Wi-Fi to a second screen
  • Record and review footage, capture photo
  • Create PhotoTalk™ media (still images with audio commentary)
  • Share media with your customers straight from the app
  • Manage jobs on the go to keep track of your inspection results
  • Capture media from your device’s front-facing and rear-facing cameras in addition
    to the CSx monitor display
  • Remotely Control the Monitor from the App.
  • Update your CSx Monitor’s Software immediately “Over-the-Air” through the App.

Additional information

Weight 7.5 kg
Brand

Ridgid

Cordless Voltage

18V

Maximum Drain Capacity

150mm / 6"

Specifications

Line Capacity 1.5″ to 6″ (40 mm to 150 mm)
Push Cable Length 100′ (30 m)
Push Cable Diameter 0.27″ (6.7 mm) with 3 mm [0.12 in] Fiberglass core
Push Cable Bend Minimum Radius 2.5″ (63.5 mm)
Weight (without batteries) 16.6 lbs. (7.5 kg)
Size Length 25″ (63.5 cm), Width 14″ (35.6 cm), Height 17″ (43.2 cm)
Camera Type 1″ (25 mm) Self-Leveling
Resolution 656 x 492 (NTSC), 768 X 576 (PAL)
Light Source 6 LEDs
Sonde 512 Hz
Operating Temperature 32°F to 104°F (0°C to 40°C)
Storage Temperature 14°F to 158°F (-10°C to 70°C)
Ingress Protection without Monitor IPx5

Technical information
