Description

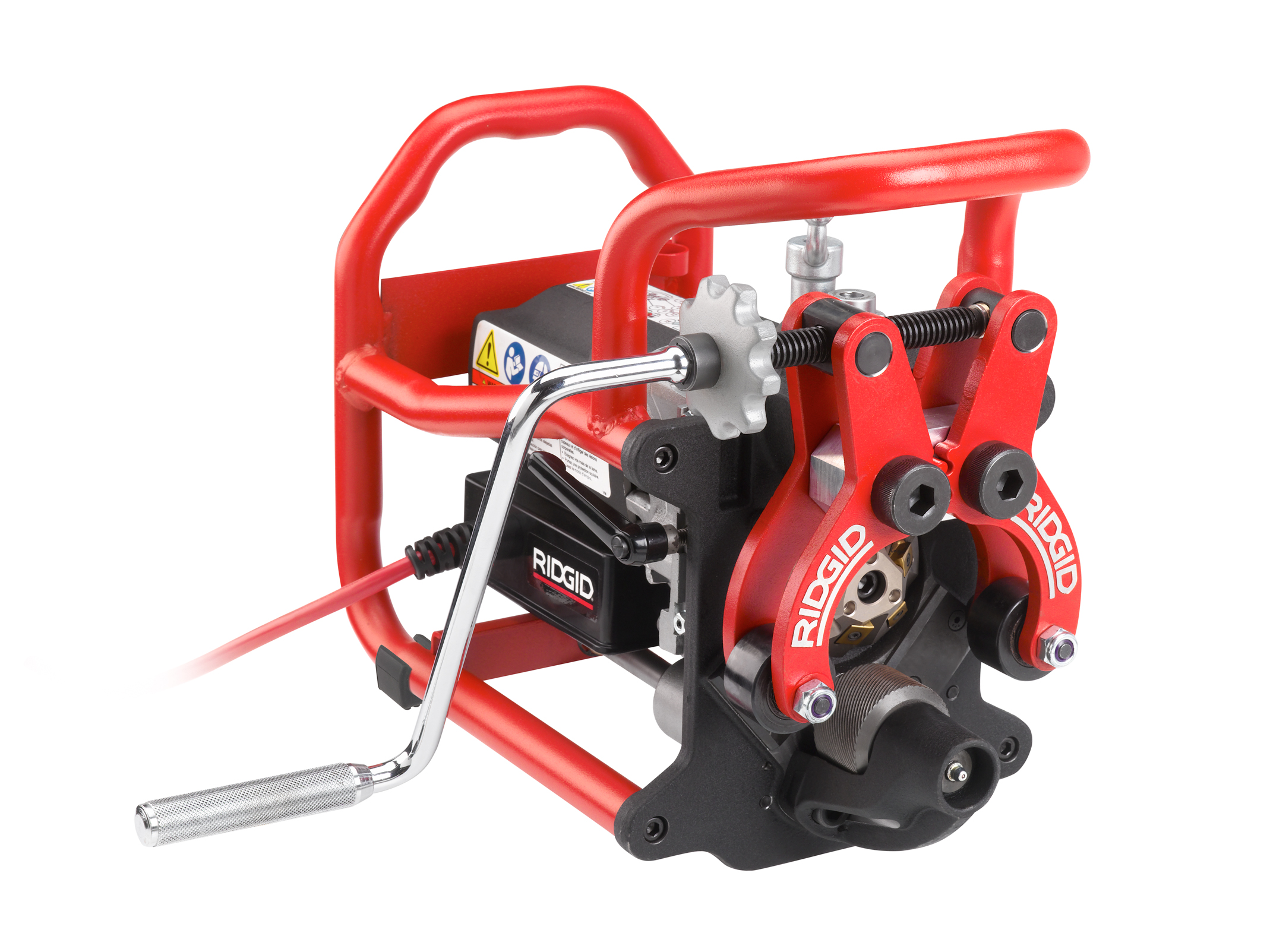

The RIDGID B-500 portable pipe beveller offers a perfect solution for bevelling pipes of 4″ diameter & larger as well flat plate. The 6 x TiN cutting inserts in the head are reversible allowing additional working life from each set. The easy to use “traffic light system” gives the user real feedback during use. The RIDGID B-500 portable pipe beveller is a safer, quicker, more consistent alternative to bevelling with a grinder. See the demo video here where the B-500 & the grinder method go head-to-head.
If you require a new or additional set of inserts we have those here.
Speed
- Set-up and bevel 10″ diameter schedule 40 pipe in 45 seconds!
- Pipe is cool to touch immediately following bevelling.
Consistency
- Accurate bevel angle around diameter of the pipe allows for optimal number of cover passes.
- Adjustable land width from 0″ to 3/16″ to fit welders’ requirements.
- Produces a machined finish due to 6 replaceable cutter inserts working simultaneously.
Simplicity
- Fast to set-up and operate.
- Patent-pending clamp system firmly secures tool to the pipe.
- Speed monitoring with led indicators for optimal cutter performance.
- Grinding spark free operation.
| CATALOG NUMBER | MODEL NO. | DESCRIPTION | WEIGHT | ||
|---|---|---|---|---|---|
| LB. | KG | ||||
| 49298 | B-500 | Portable Pipe Bevelling Machine w/37 1/2° Cutter Head, 120V | 56 1/2 | 24.00 | |
| 49303 | Portable Pipe Bevelling Machine w/37,5⁰ Cutter Head, 230V | 56 1/2 | 24.00 | ||
| 55093 | Portable Pipe Bevelling Machine w/ 45° Cutter Head 230V * | 56 1/2 | 24.00 | ||
| 55098 | Portable Pipe Bevelling Machine w/ 30° Cutter Head 230V * | 56 1/2 | 24.00 | ||
| 53543 | Portable Pipe Bevelling Machine w/37,5° Cutter Head, 110 V | 56 1/2 | 24.00 | ||
| 56823 | Portable Pipe Bevelling Machine w/30° Cutter Head, 110 V | 56 3/5 | 24.00 | ||
| 56828 | Portable Pipe Bevelling Machine w/45° Cutter Head, 110 V | 56 1/2 | 24.00 | ||
