Description

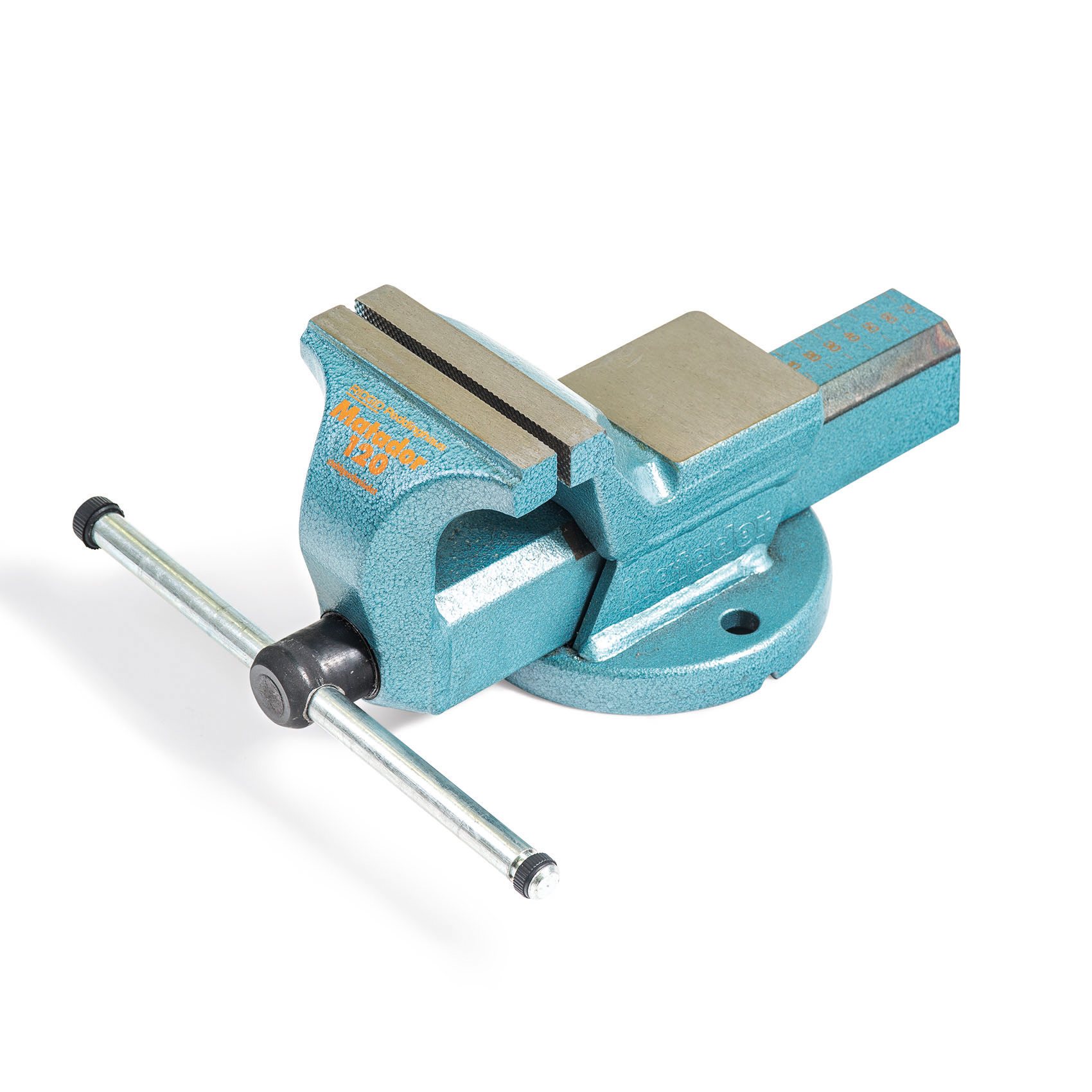

RIDGID Peddinghaus vises reknowned for quality and durability, produced in Germany for over 100 years. Quite possibly the finest vices in the world!
Features
- All forged steel construction 3 times stronger than cast iron
- Large hardened anvil
- Hardened and serrated jaws for maximum durability
- Machined and hardened sliding surfaces
- Rolled twin start Acme thread for precise operation and longevity
- Removable steel spindle nut
- Measuring scale
| CATALOG NUMBER | MODEL NO. | B (MM) | W (MM) | GL (MM) | S (MM) | AXB (MM) | D1 (MM) | D2 (MM) | D (MM) | WEIGHT | ||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| LB. | KG | |||||||||||
| 10803 | 100 | 100 | 125 | 270 | 36 | 65 x 70 | 120 | 90 | 11 | 13.0 | 6.0 | |
| 10804 | 120 | 120 | 150 | 340 | 50 | 75 x 70 | 150 | 115 | 14 | 22.0 | 10.0 | |
| 10805 | 140 | 140 | 200 | 440 | 55 | 95 x 90 | 180 | 145 | 14 | 39.7 | 18.0 | |
| 10806 | 160 | 160 | 225 | 500 | 65 | 120 x 110 | 180 | 145 | 14 | 55.2 | 25.0 | |
| 10807 | 180 | 180 | 225 | 500 | 65 | 120 x 110 | 180 | 145 | 14 | 57.4 | 26.0 | |
