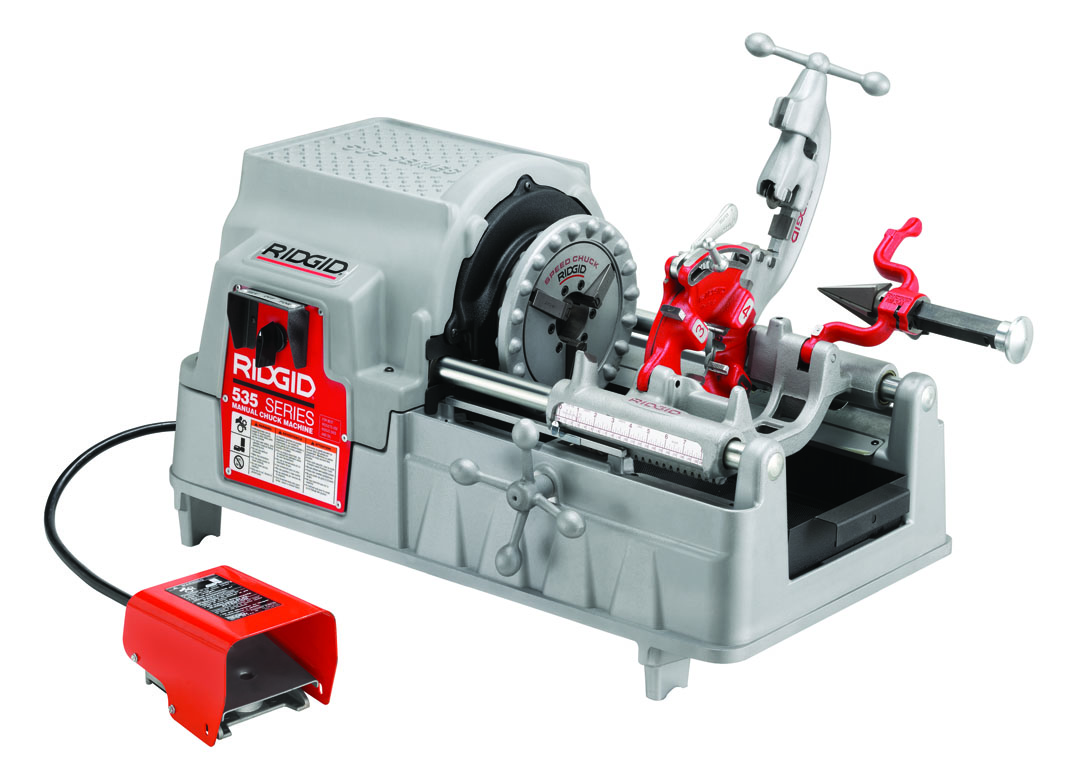

Ridgid 535 Threading Machine 1/8″ – 2″

£5.869.44£7.222.08 ex VAT

The Model 535 maintains the ruggedness of the industry workhorse while adding the features that makes the threading operation more productive. A large chip tray and oil reservoir makes the 535 ideal for longer uninterrupted threading. The 535 is designed around maximum uptime with the upgrades that matter most to the pipe working professional. Users also benefit from the part commonality between the 535, the 535A Automatic and other RIDGID® equipment.



Clear
SKU: N/A Category:

Description

  • Large 1.75 gallon (6.6 L) oil tray.
  • Large chip tray.
  • Generous top cover for keeping tools and fittings handy.
  • High clearance carriage makes threading easier.
  • Speed chuck with rocker-action jaws centers and grips work piece instantly.
  • Can be used with geared Models 141 and 161 threaders.
  • Uses Model 816/817 semiautomatic, Model 815A self-opening or Model 811A quick-opening die heads.
  • Length gauge for quick, accurate cut-off.
CATALOG NUMBER MODEL NO. DESCRIPTION DIE HEAD RPM VOLTAGE (V) FREQUENCY (HZ) PHASE MOTOR TYPE AMP DRAW (A) POWER WEIGHT
LB. KG
96507 535 1/2″ – 2″ NPT Hammer Chuck Machine 811A 36 230 50 – 60 1 Universal 7.5 1/2 HP 260.0 117.9
66630 535 1/2″ – 2″ BSPT Hammer Chuck Machine 811A 36 230 50 – 60 1 Universal 15 1500 W 251.0 114.0
96062 535 Hammer Chuck Machine Only – No Die Head or Dies 36 115 50 – 60 1 Universal 15 1500 W 255.8 116.0
96052 535 Hammer Chuck Machine Only – No Die Head or Dies 36 230 50 – 60 1 Universal 7.5 1500 W 255.8 116.0
12451 535 1/2″ – 2″ BSPT Hammer Chuck Machine 815A 35/70 400 50 3 Induction 3.5/5.1 1350/1700 W 348.0 158.0
10971 535 1/2″ – 2″ BSPT Hammer Chuck Machine 811A 36 115 50 – 60 1 Universal 15 1500 W 251.0 114.0
10981 535 1/2″ – 2″ BSPT Hammer Chuck Machine 815A 36 230 50 – 60 1 Universal 7.5 1500 W 251.0 114.0
12441 535 1/2″ – 2″ BSPT Hammer Chuck Machine 811A 35/70 400 50 3 Induction 3.5/5.1 1350/1700 W 348.0 158.0
96047 535 Hammer Chuck Machine Only – No Die Head or Dies 35/70 400 50 3 Induction 3.5/5.1 1350/1700 W 255.8 116.0

Additional information

Weight N/A
Brand

Ridgid

Maximum Pipe Capacity

2"

Thread Type

BSPT, NPT

Corded Voltage

110V, 240V, 415V

Specifications

Pipe Capacity 1/8″-2″ (3mm-50mm) 2 1/2″-4″ (62mm-100mm), 4″-6″ (100mm-150mm) with 141 and 161 geared threaders.
Bolt Capacity 1/4″-2″ (6mm-50mm).
Switches Forward/off/reverse and integral foot switch.
Chuck Speed Chuck™ with three replaceable rocker-action jaw inserts.
Rear Centering Device Cam-action, turns with chuck.
Cutters Self-centering, full-floating. Two models available: Standard Model 820 Wheel-Type Cutter, pipe capacity 1/8″-2″ (3mm-50mm), bolt capacity 1/4″-1″ (6mm-25mm). Optional Model 821 Blade-Type cutter, pipe capacity 1/2″-2″ (12mm-50mm). See ordering chart.
Reamer 5-flute cone, RH, 1/8″-2″ (3mm-50mm).
Oil Pump Self-priming gerotor oil pump.
Reamers RH/LH combination reamer available.
