Description
Ridgid Model S tube expander tools & tube expander sets. Metric & imperial sets from 3/8″ – 1 1/8″ & 12mm – 40mm
Features

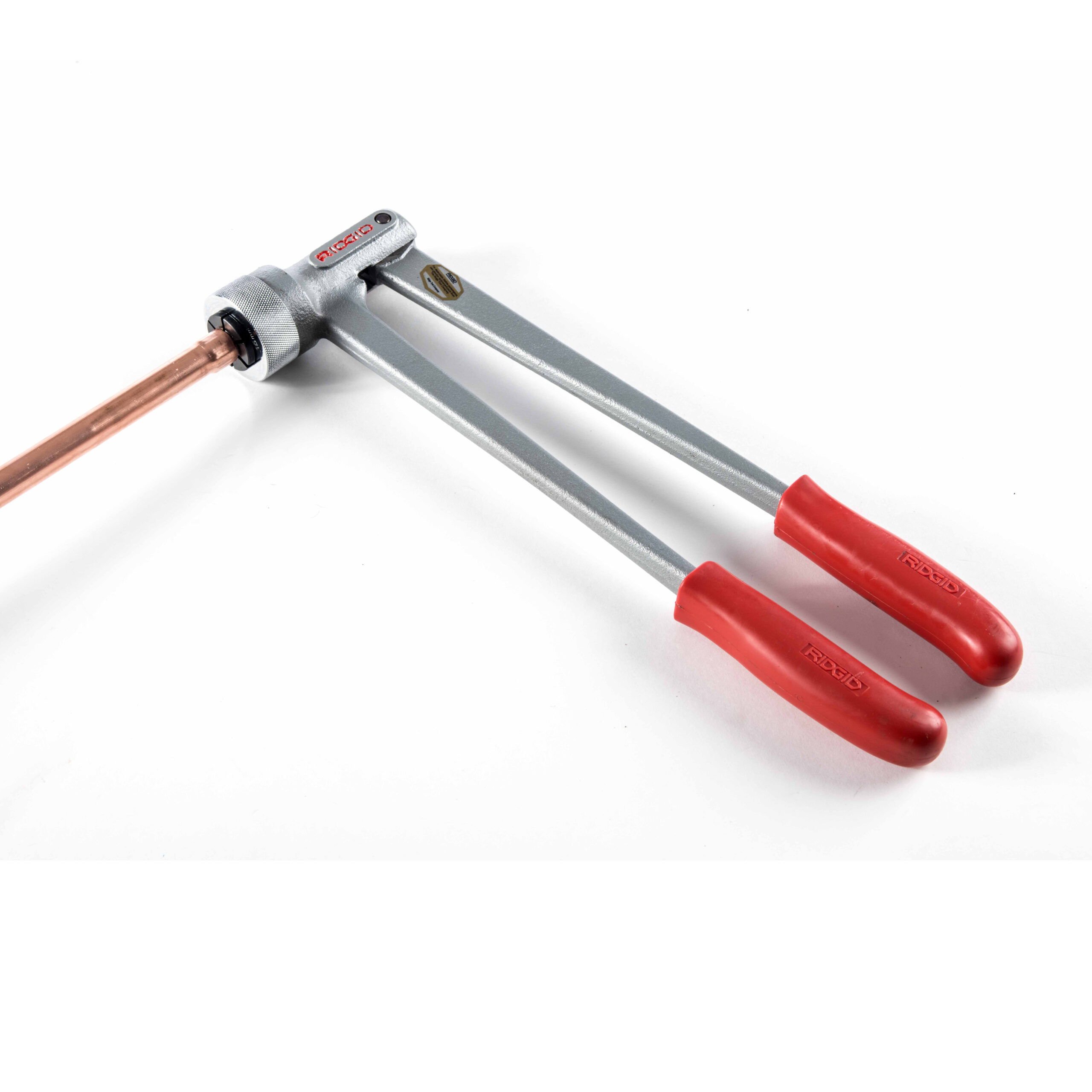

- These single-stage expanders are designed to expand tubing for fast, accurate joints in soft copper, aluminum and soft steel tube without using fittings. The mechanism is free-floating and self-centering.
| CATALOG NUMBER | MODEL NO. | DESCRIPTION | WEIGHT | ||
|---|---|---|---|---|---|
| LB. | KG | ||||
| 15071 | S | Tube Expander Tool | 1 1/2 | 0.7 | |
| 34152 | 8 | Kit with 3/8″, 1/2″, 3/4″, 1″ Heads and Case | 6 1/2 | 0.0 | |
| 10411 | A | Expander Set 12, 15, 18, 22 mm | 7 | 3.2 | |
| 15181 | T | Expander Set 12, 14, 16, 18, 22 mm | 5 1/2 | 2.5 | |
| 16051 | U | Expander Set 12, 15, 22, 28 mm | 5 1/2 | 2.5 | |
| 16971 | W | Expander Set 12, 14, 16, 18, 22, 28, 32, 40 mm | 9 1/2 | 4.3 | |
| 17411 | X | Expander Set 3/8″, 1/2″, 5/8″, 3/4″, 7/8″, 1 1/8″ | 7 | 3.2 | |
